Mindray VetiX S380
END OF YEAR SPECIAL
£23,000 +vat
Orders must be placed and installed before end of 2026

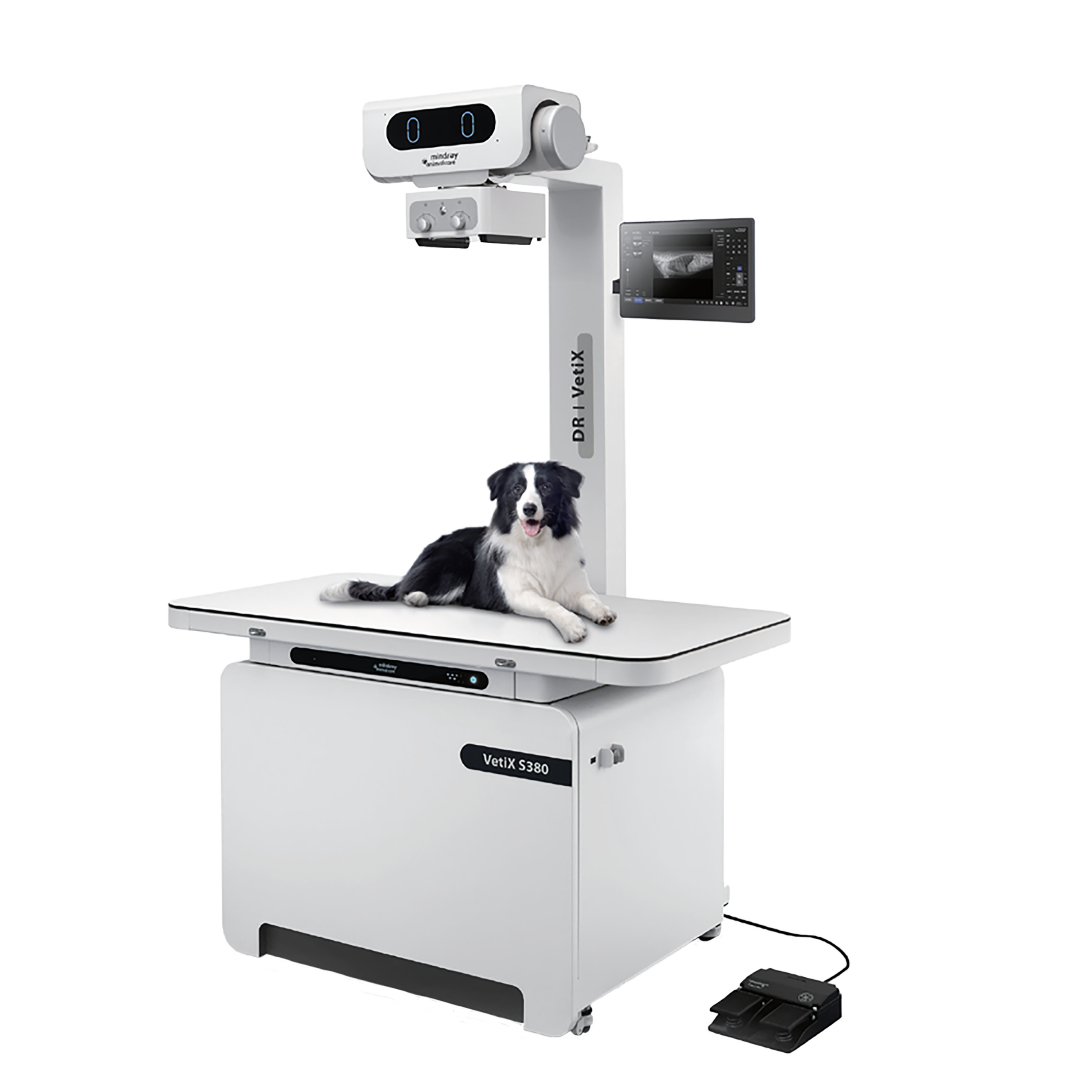

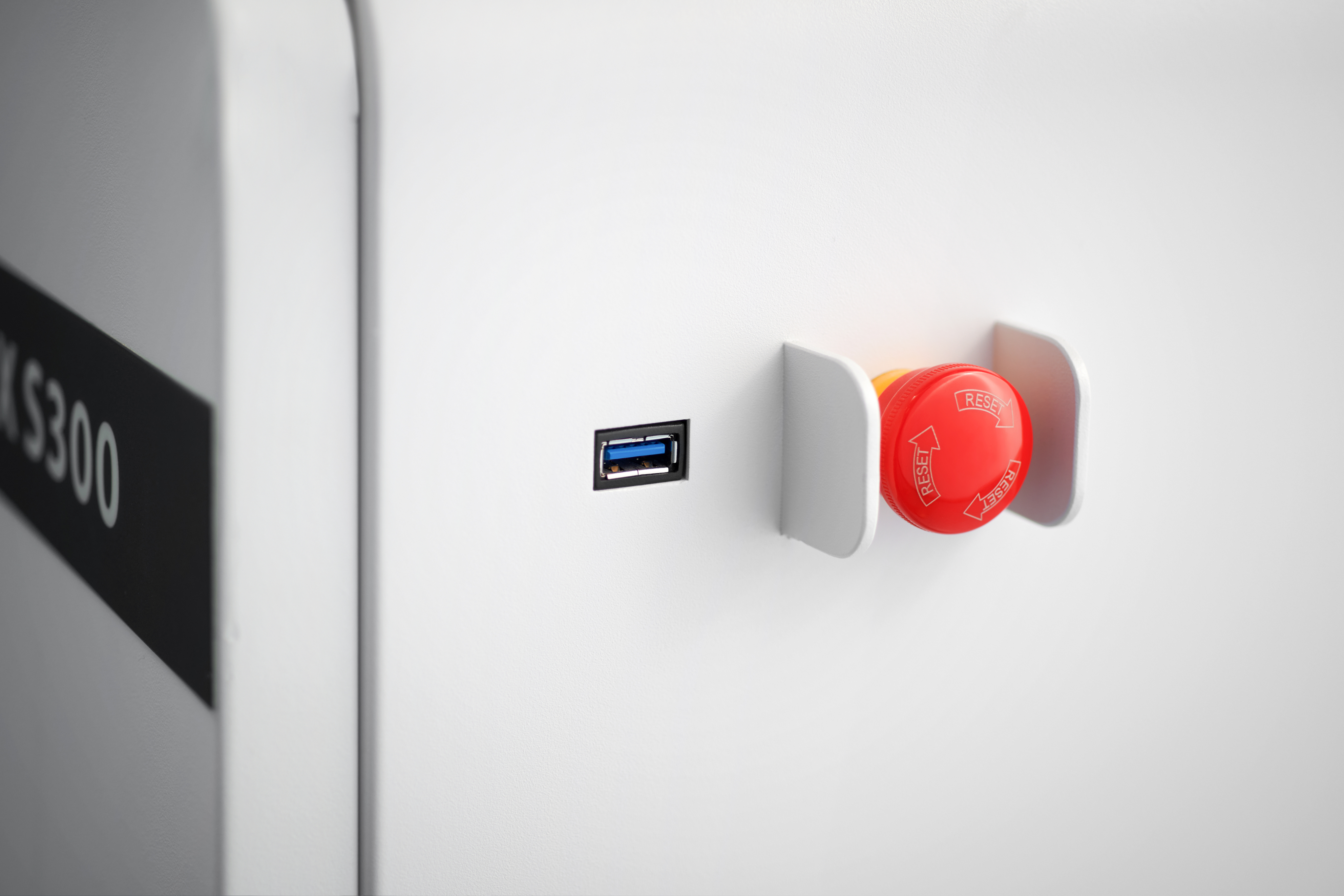

The Mindray VetiX S380 is Mindray Animal’s latest digital radiography (DR) veterinary X-ray machine. It features a Canon X-ray tube, a patented software algorithm, a rack system, a flat panel detector, and a high-voltage generator. The system is CE-certified and meets human digital radiography standards while being specifically designed for veterinary use. The integrated design includes a generator and IPC, with an ultra-high-frequency inverter at 460kHz to reduce radiation noise and enhance image quality. The flat panel is rated IP54 for dust and water resistance. The Canon X-ray tube has a lifespan of 100,000 exposure cycles. Built-in safety features include an emergency stop switch and a real-time status indicator. The Mindray VetiX S380 is ideal for companion animals, including larger canines, thanks to its imaging stitching capabilities. The difference between the Mindray VetiX S300 and S380 is that the VetiX S380 includes a touch screen panel for improved ease of use.
| X-Ray Generator | |
|---|---|
| Constant Potential kW Rating | 32 kW |
| kVp Range | 40–125 kVp |
| mAs Range | 0.1–125 mAs |
| mA Range | 10–500 mA |
| Maximum Inverter Frequency | 460 kHz |
| Tube | |

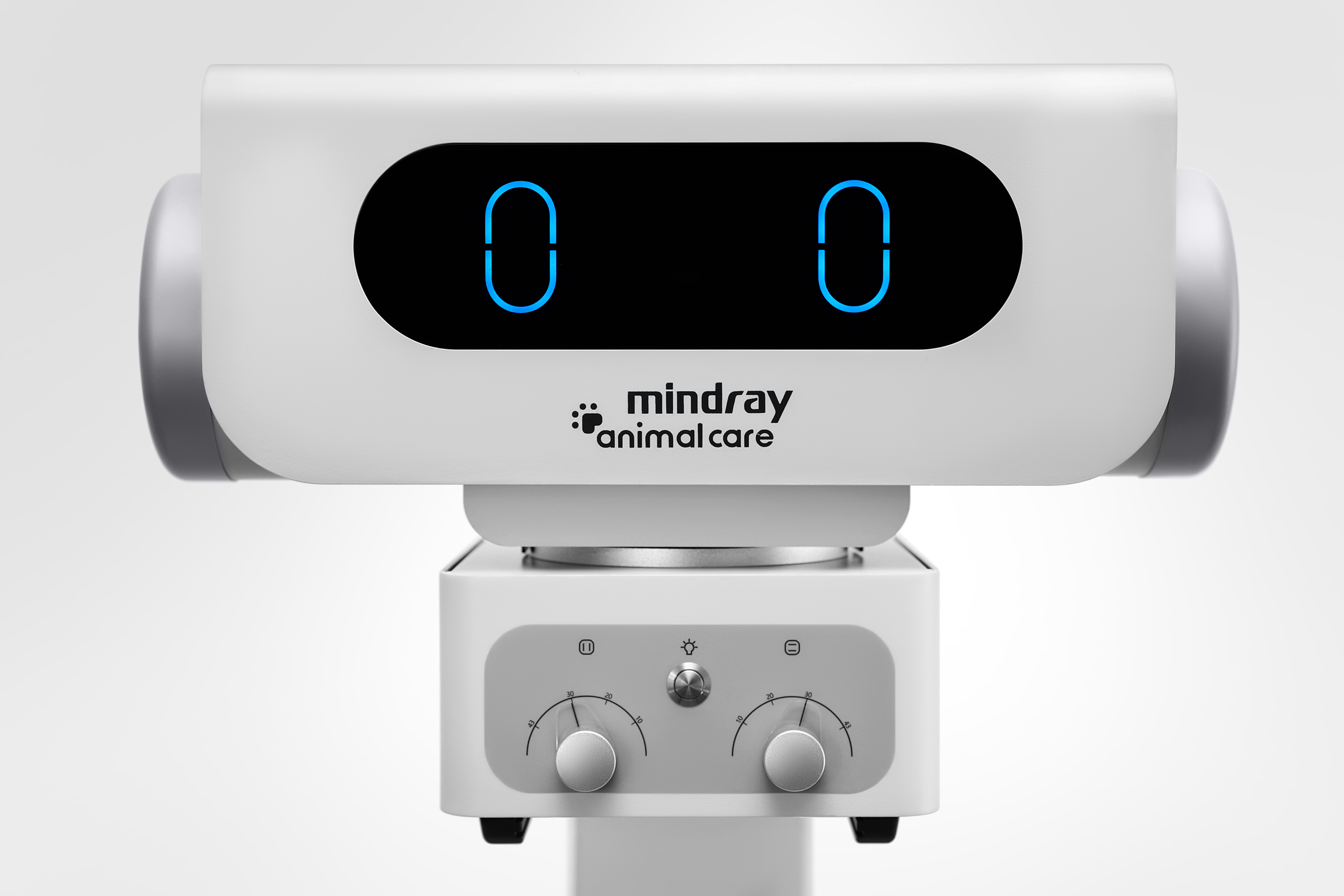

| Model | Canon E7239X |
| X-Ray Tube | Rotating anode (1.0 / 2.0 mm focal spots) |
| Rated Life | 100,000 exposures |
| Exposure Time | 0.001–8 sec |
| Total Filtration | ≥2.5 mmAl (at 70 kV) |
| Flat Panel Detector | |
| Scintillator Material | CsI (cesium iodide) |
| Pixel Spacing | 140 µm |
| Pixel Matrix | 3072 × 3072 pixels |
| Valid Data Bits | 16 bits |
| Preview Time | ≤2.3 sec |
| Protection Class | IP54 (dustproof and waterproof) |
| Rack / Table | |
| Tabletop Type | Floating, 4-way |
| Tabletop Length | 150 cm standard (~59 in), 120 cm optional (~47 in) |
| Maximum Patient Weight | 80 kg (~176 lb) |
| Brakes | Electromagnetic |
| Accessories | |
| Touchscreen | 15.6 in |
| Exposure Modes | Hand switch, foot switch, voice control (iVocal) |
The Mindray VetiX S380 DR system includes software and operational features that make the system user friendly including:
- iShotHelper: Professional positioning guidance software, that gives visual aid on how to position the animal.
- iVocal: Voice command for efficient capturing of exposure, frees up hands to provide comprehensive care for animals.
- iSolo: Single-operator Workflow includes automatic transition to the next position after exposure that enables the user to complete the examination process in the same interface.

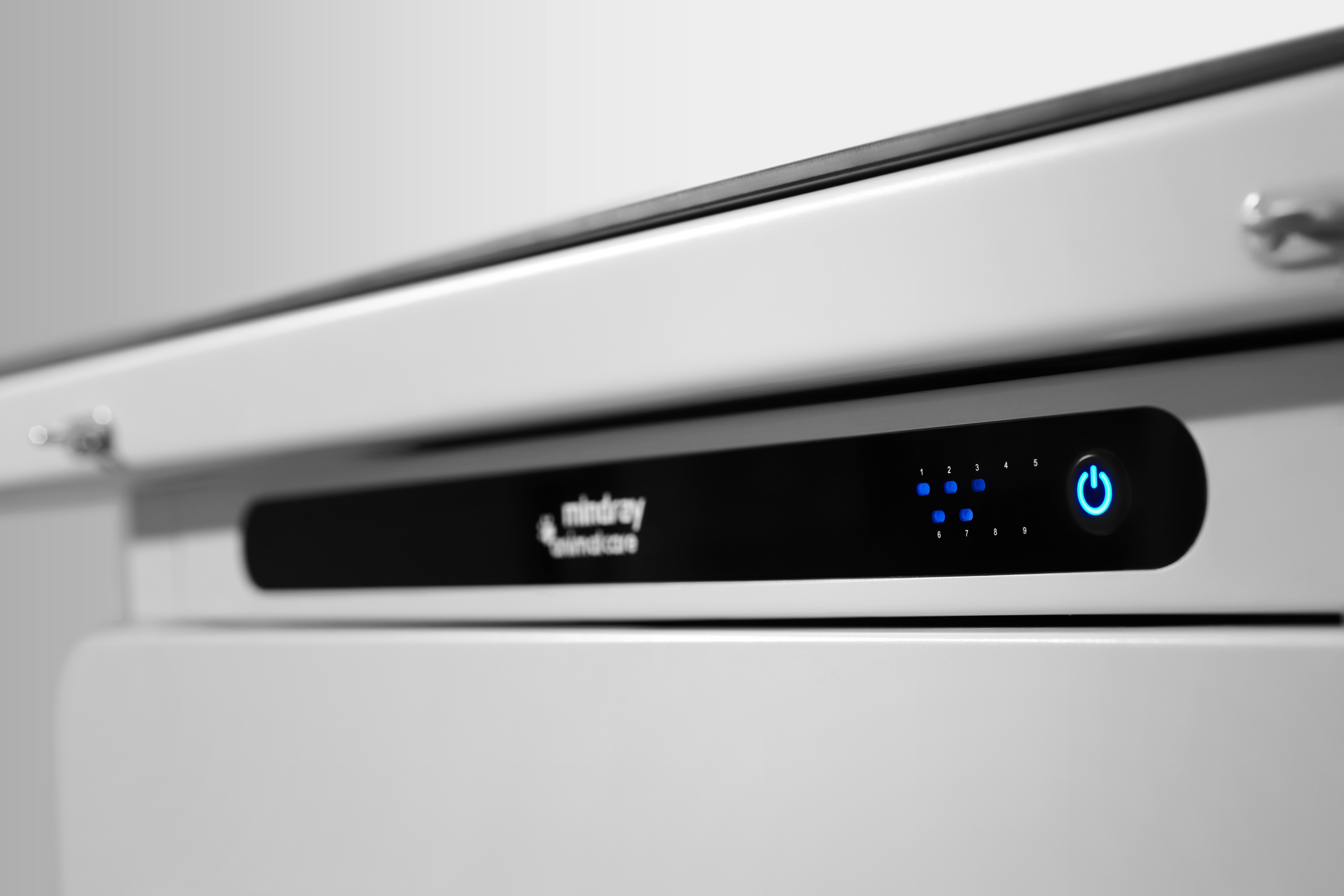

- iFast: One-key Power On/Off & one-click registration and immediate exposure for canine and feline emergencies

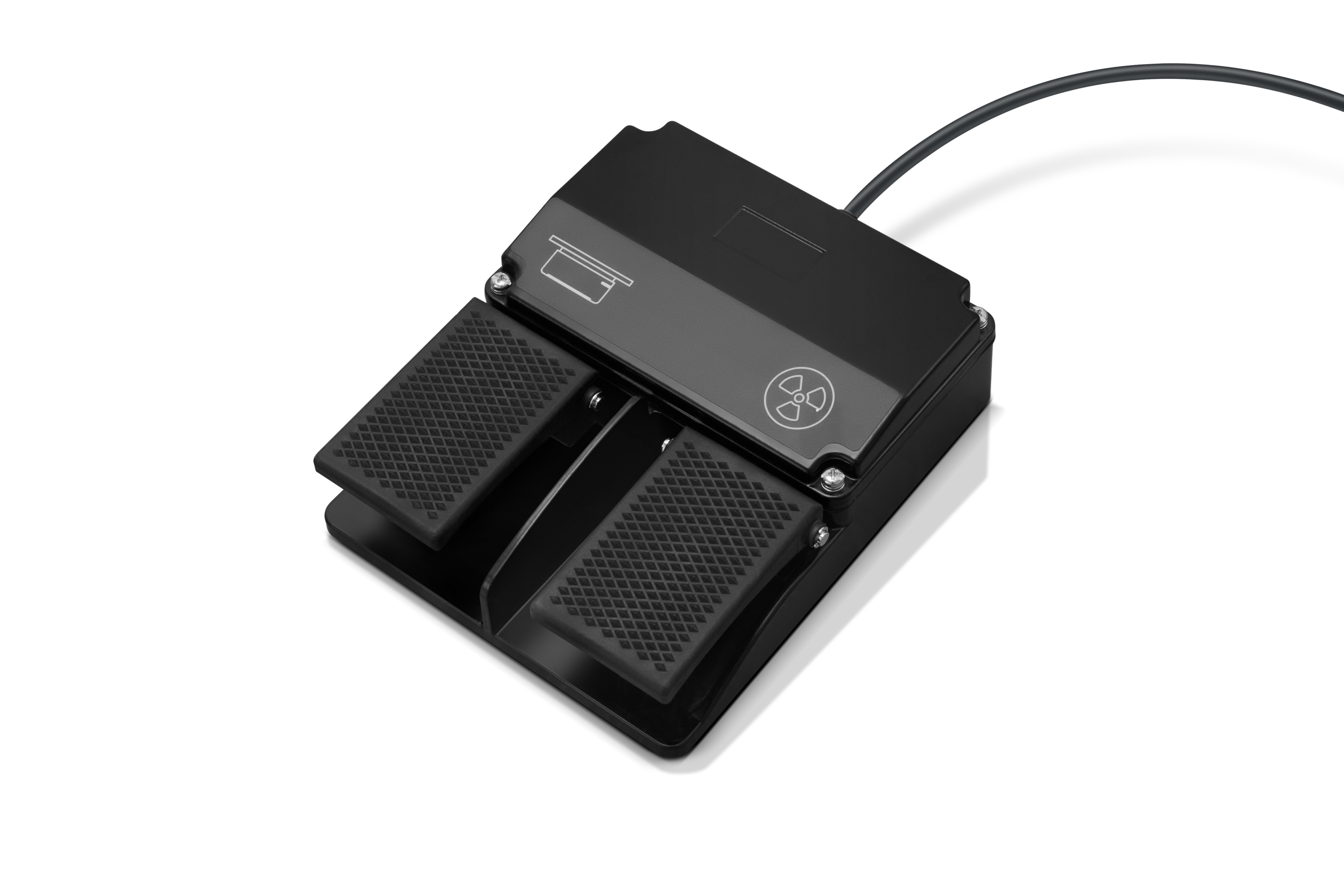

- FootSwitch Exposure Grading: reduces motion artefacts.
- Measurement tools: a toolkit for enhanced measurement accuracy.
- Image Stitching: enhance the diagnostic capability of larger animals with long bone image stitching.
- Touch screen panel for improved ease of use.
