Probo Medical is the authorised UK distributor and maintenance provider for the IRadimed 3880 Non-Magnetic Portable Monitor, accessories, and associated consumables.
These unique characteristics make it the first and only portable patient monitor for MRI environment. This will simplify the streamline the entire transport process from the department to the MRI scanner and back - in a cost effective manner.
A screen for the entire MRI process
Continuity of patient monitoring and data storage
Eliminates the need to have a dedicated transport monitor
Prepare the patient on the ward for a more effective use of an MRI room and MR personnel.
Standard
Wireless 5-lead ECG
Wireless Masimo SpO 2
SpO2 Perfusion
NIBP
Dynamic Trend
Colour-coded alarm system
Options:
EtCO2
Anaesthetic agent ID with automatic detection of gas type
O2 and N2O
Fibre-optic temperature
Cardiac and Peripheral Gating
Wireless Control from the control room (tablet)
The wireless tablet is a "mirror" of the monitor and can operate most functions on the monitor, for example NIBP
The wireless tablet will be charged in the supplied docking station, which also includes network interface, and battery charger for monitor.
Wireless Functionality (patient monitor)
3- or 5- lead ECG
Masimo® SpO2
Extended Battery life
Small and light
Handy for all patient types

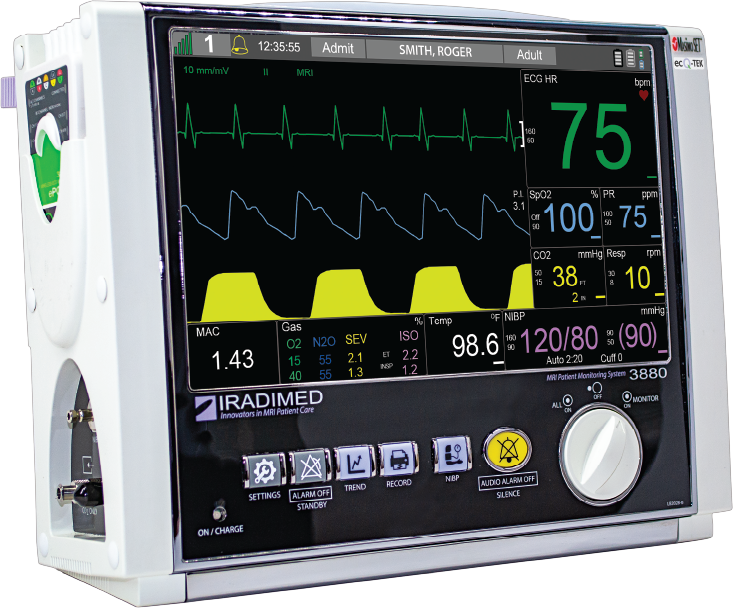

MRI Patient Monitoring
The first and only portable multi-parameter monitor for MRI environment
Clear user interface with colour screen and touch function.
The time when you need one monitor for transport and one monitor in the MRI scanner is over. IRadimed 3880 is the world's first non-magnetic patient monitor, designed to be small, lightweight, and safe.
IRadimed 3880 MRI Patient Monitoring System Accessories & Consumables
Product Code
Name
Description
1812-25
Hextrode Electrode (Box of 25)
MRI electrode for 3, 4 and 5 lead applications. Features a simple all in one application plus break away electrodes for maximum application flexibility.
1813-3
ECG Skin Prep Gel (Box of 3)
Package of 3 4 oz (114g) tubes of skin prep gel to prepare patients skin for MRI ECG electrodes.
1811
9” Five Lead ePOD Leadwire (AHA/AAMI)
ECG leadwire for 3 and 5 lead ECG applications with AAMI color coding commonly used in the US. For Use with Iradimed 3881ePOD only.
1811E
9” Five Lead ePOD Leadwire (IEC)
ECG leadwire for 3 and 5 lead ECG applications with IEC color coding commonly used in the European Union. For Use with IRadimed 3881 ePOD only.
3881
8 Channel Wireless ePOD
Wireless MRI ECG module for use with the IRadimed 3880 Monitor.
1822A-25
Adult SpO2 Secure Wrap (Box of 25)
Disposable SpO2 applicator designed for adult digits. Features unique repositionable adhesive & prepositioning guides.
1822P-25
Ped SpO2 Secure Wrap (Box of 25)
Disposable SpO2 applicator designed for paediatric digits. Features unique repositionable adhesive & prepositioning guides.
1822I-25
Infant SpO2 Secure Wrap (Box of 25)
Disposable SpO2 applicator designed for infant digits. Features unique repositionable adhesive & prepositioning guides.
1822N-25
Neonatal / Adult SpO2 Secure Wrap (Box of 25)
Disposable SpO2 applicator designed for neonatal hands, feet and wrist and Large Adult digits. Features unique repositionable adhesive & prepositioning guides.
1171
Reusable Grip Sensor (Size 1,2 and 3)
Reusable Grip Sensors come in 3 sizes
1821
Fiber Optic oPOD SpO2 Cable
Fiber optic SpO2 cable for use with Iradimed’s 3881 oPOD.
3882
8 Channel Wireless oPOD
Wireless MRI SpO2 module featuring Masimo technology. For use with the IRadimed 3880 Monitor. Includes: 1171 grip sensor kit and an 1821 SpO2 cable.
1832LA
Large Adult Reusable Cuff (34-44cm)
Reusable Non-Invasive blood pressure cuff are constructed of an extremely soft, easy to clean material to provide a long usable life and support multiple patient use.
1832LA-Long
Adult Long Reusable Cuff (27-35cm)
Adult Long cuff provides an additional 3 inches (~8cm) of length for larger sized limbs.
1832A
Adult Reusable Cuff (27-35cm)
Reusable Non-Invasive blood pressure cuff are constructed of an extremely soft, easy to clean material to provide a long usable life and support multiple patient use.
1832SA
Small Adult Reusable Cuff (20.5-28.5cm)
Reusable Non-Invasive blood pressure cuff are constructed of an extremely soft, easy to clean material to provide a long usable life and support multiple patient use.
1832P
Pediatric Reusable Cuff (14-21.5cm)
Reusable Non-Invasive blood pressure cuff are constructed of an extremely soft, easy to clean material to provide a long usable life and support multiple patient use.
1832I
Infant / Neonatal Size 5 Reusable Cuff (9-15cm)
Reusable Non-Invasive blood pressure cuff are constructed of an extremely soft, easy to clean material. This cuff works best in neonatal mode.
1833N4-10
Neonatal Size 4 Cuff (7-13cm) (Box of 10)
Reusable Non-Invasive blood pressure cuff are constructed of an extremely soft, easy to clean material. This cuff works best in neonatal mode.
1833N3-10
Neonatal Size 3 Cuff (6-11cm) (Box of 10)
Single Use Non-Invasive blood pressure cuffs are constructed of soft fabric material that conforms to the tiniest of patients. This cuff works best in neonatal mode.
1851
Optical Temperature Sensor
Multiple use Fiber Optic temperature sensor
1833N2-10
Neonatal Size 2 Cuff (4-8cm) (Box of 10)
Single Use Non-Invasive blood pressure cuffs are constructed of soft fabric material that conforms to the tiniest of patients. This cuff works best in neonatal mode.
1833N1-10
Neonatal Size 1 Cuff (3-6cm) (Box of 10)
Single Use Non-Invasive blood pressure cuffs are constructed of soft fabric material that conforms to the tiniest of patients. This cuff works best in neonatal mode.
1831
Blood Pressure Hose (NIBP)
Single lumen non-invasive blood pressure hose featuring simple connections
1842A-25
Adult Nasal Cannula (Pack of 25)
Single use standard nasal cannula for use with IRadimed 1841 sample line (filter not included)
1842P-25
Pediatric Nasal Cannula (Pack of 25)
Single use standard nasal cannula for use with IRadimed 1841 sample line (filter not included)
1842I-25
Infant Nasal Cannula (Pack of 25)
Single use standard nasal cannula for use with IRadimed 1841 sample line (filter not included)
1843A-25
Adult Oral / Nasal Cannula (Pack of 25)
Single use flexible Cannula for nasal and mouth access. For use with IRadimed 1841 sample line (filter not included)
1843P-25
Pediatric Oral / Nasal Cannula (Pack of 25)
Single use flexible Cannula for nasal and mouth access. For use with IRadimed 1841 sample line (filter not included)
1844A-25
Adult Divided Nasal Cannula (Pack of 25)
Single use divided nasal cannula with O2 delivery for use with IRadimed 1841 sample line (filter not included)
1844P-25
Pediatric Divided Nasal Cannula (Pack of 25)
Single use divided nasal cannula with O2 delivery for use with IRadimed 1841 sample line (filter not included)
1841-25
Filtered Sample Line Extension, 2.4m (Pack of 25)
2.4 Meter coextruded sample line with hydrophobic filter with one male and one female luer locks on each end with a rotating lure adapter to convert it to a male/male line. For use with capnography, ventilation and anesthetic agent gas monitoring.
1849-25
Nomoline Agent Sample Line, 2.0m (Box of 25)
For use with IRadimed’s 3886 Wireless Multi- Gas Unit only. Has a male luer lock. 1841 sample lines
1850-10
Nomoline Agent Reusable Filter (Box of 10)
For use with IRadimed’s 3886 Wireless Multi- Gas Unit only. Has a male luer lock. 1841 sample lines
1845-25
Adult / Pediatric Airway Adapter (Pack of 25)
Airway adapter for anesthetized and ventilated patients. For use with IRadimed 1841 sample lines.
3883C-1
Dual Channel Invasive Pressure ipPOD with 1861 Universal Dual 6 pin “MS” cable & POD Charger Bundle
POD Charger converts an 1133 large battery charging bay in the IRadimed’s 3885B Base Station for charging of the 3881 ePOD, 3882 oPOD and 3883 ipPOD. Requires a 3rd party adapter cable to interface the Invasive Transducer with the 3883 ipPOD. Caution must be used with 3rd party adapters to ensure MRI safety and users must avoid coiling or looping the 3rd party interface cable in or near the MRI bore. IRadimed recommends the shortest MR Conditional adapter available. Requires an 1887 antenna to be installed on the 3880. POD Charger converts an 1133 large battery charging bay in the IRadimed’s 3885B Base Station for charging of the 3881 ePOD, 3882 oPOD and 3883 ipPOD.
3883C-2
Dual Channel Invasive Pressure ipPOD with 1862 TruWave Invasive Line Cable
Wireless MRI IBP module featuring two simultaneous pressure channels. Allows up to 2 TruWave (Edwards Lifesciences) Invasive lines to interface directly with the ipPOD without the need for adapters. Requires an 1887 antenna to be installed on the 3880.
3883C-3
Dual Channel Invasive Pressure ipPOD with 1863 Transpac IV Invasive Line Cable & POD Charger Bundle
Wireless MRI IBP module featuring two simultaneous pressure channels. Allows up to 2 Transpac IV (ICU Medical / Hospira / Abbot) Invasive lines to interface directly with the ipPOD without the need for adapters. Requires an 1887 antenna to be installed on the 3880. POD Charger converts an 1133 large battery charging bay in the IRadimed’s 3885B Base Station for charging of the 3881 ePOD, 3882 oPOD and 3883 ipPOD.
Wireless MRI IBP module featuring two simultaneous pressure channels via the 2 six- socket generic IBP connectors. Requires a 3rd party adapter cable to interface the Invasive Transducer with the 3883 ipPOD. Caution must be used with 3rd party adapters to ensure MRI safety and users must avoid coiling or looping the 3rd party interface cable in or near the MRI bore. IRadimed recommends the shortest MR Conditional adapter available. Requires an 1887 antenna to be installed on the 3880
3883-2
Dual Channel Invasive Pressure ipPOD with 1862 TruWave Invasive Line Cable
Wireless MRI IBP module featuring two simultaneous pressure channels. Allows up to 2 TruWave (Edwards Lifesciences) Invasive lines to interface directly with the ipPOD without the need for adapters.
3883-3
Dual Channel Invasive Pressure ipPOD with 1863 Transpac IV Invasive Line Cable
Wireless MRI IBP module featuring two simultaneous pressure channels. Allows up to 2 Transpac IV (ICU Medical / Hospira / Abbot) Invasive lines to interface directly with the ipPOD without the need for adapters. Requires an 1887 antenna to be installed on the 3880.
1861
Universal dual 6 pin “MS” Invasive Line Cable
Cable provides 2 six-socket generic IBP connectors. Requires a 3rd party adapter cable to interface the Invasive Transducer with the 3883 ipPOD. Caution must be used with 3rd party adapters5. to ensure MRI safety and users must avoid coiling or looping the 3rd party interface cable in or near the MRI bore. IRadimed recommends the shortest MR Conditional adapter available. Replacement part for use with the 3883 ipPOD only.
1862
Dual Chanel TruWave Invasive Line Cable
Allows up to 2 TruWave (Edwards Lifesciences) Invasive lines to interface directly with the 3883 ipPOD without the need for adapters. Replacement part for use with the 3883 ipPOD only.
1863
Dual Chanel Transpac IV Invasive Line Cable
Allows up to 2 Transpac IV (ICU Medical / Hospira / Abbot) Invasive lines to interface directly with the 3883 ipPOD without the need for adapters. Replacement part for use with the 3883 ipPOD only.
1882-3
3885B Recorder Paper (Pack of 3)
3 Rolls or printer paper for the 3885B recorder
1881
Universal Gating Interface
Non-Magnetic gating interface cable for use with MRI Systems equipped with cardiac gating leads
1133
3880 Battery
Non-Magnetic battery used with the 3880
1188
3885T Battery
Non-Magnetic battery used with the 3885T
1888
POD Battery Bay Adapter
£780.Converts an 1133 large battery charging bay in the IRadimed’s 3885B Base Station for charging of the 3881 ePOD, 3882 oPOD and 3883 ipPOD.
1887
Dual Radio Module
Allows a 3880 system to communicate with an IRadimed external add-on accessory such as the 3886 Wireless Multi-Gas Unit and / or 3883 ipPOD. Note: 1887 is included with a 3886 Multi-Gas module
HE13
Omni Directional Antenna
Standard antenna
1177
High Gain Antenna
Focused antenna provides improved wireless communication through certain MRI shielding
1891
3880 Flexible Mounting Adapter
Non-magnetic mounting adapter that attaches to the 3880 to allow it for circular and rectangular horizontal bedrail mounting and vertical pole mounting
1119
IRadimed Roll Stand
Non-magnetic roll stand for use with IRadimed MRI Patient Monitors and MRI IV Infusion Pumps. Note: 1119M Maybe substituted for 3880 use
1883
3886 Mounting Arm
Non-magnetic mounting arm to attach the 3886 to MRI Anesthesia machines. For use with the 1891 mounting adapter. Mounts directly with GCX rail systems. Call IRadimed if you need an adapter for another anesthesia machine brand.
1884
3880 Mounting Arm
Non-magnetic mounting arm to attach the 3880 to MRI Anesthesia machines. Must use the 1891 to attach the 3880. Mounts directly with GCX rail systems. Call IRadimed if you need an adapter for another anesthesia machine brand.
